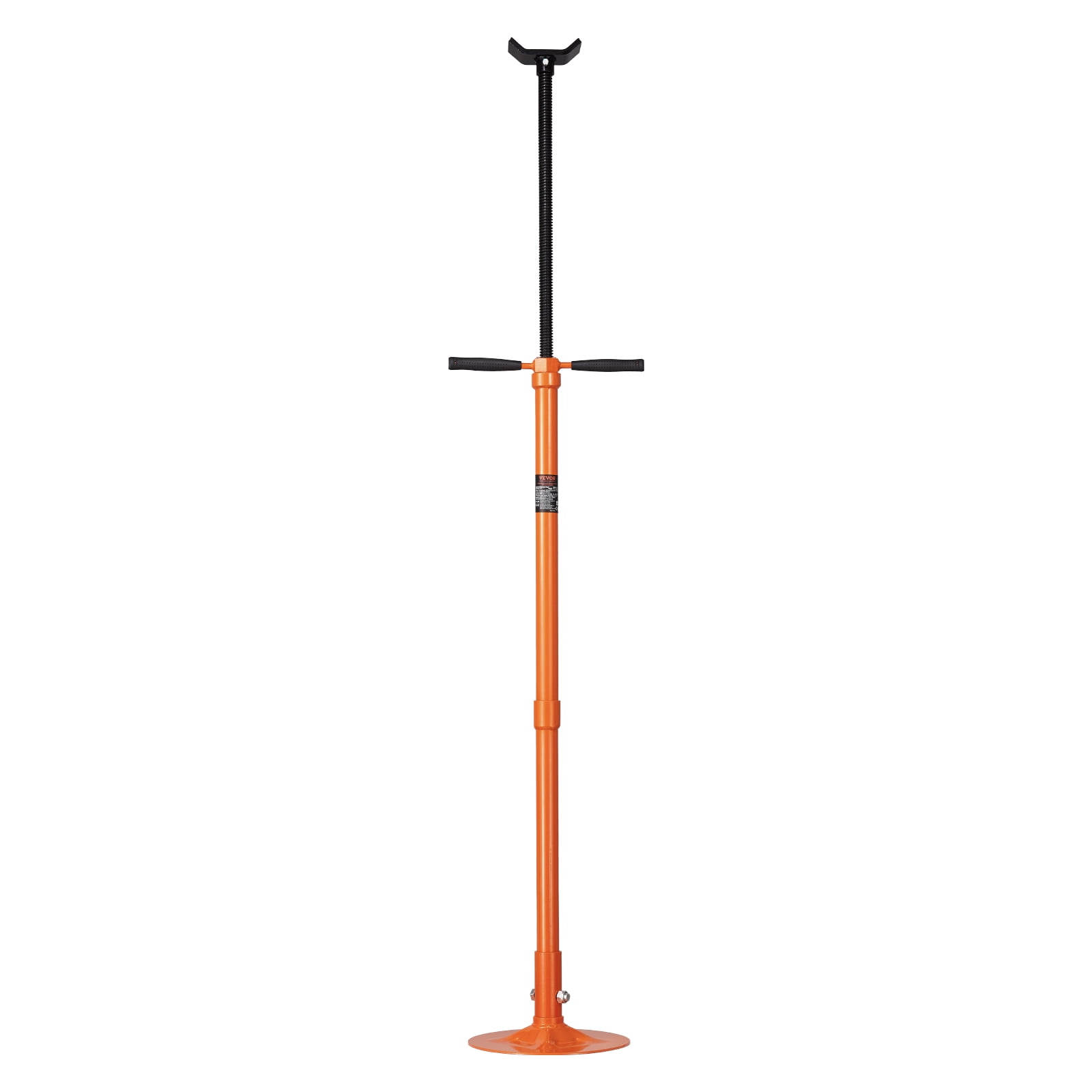

VEVOR Underhoist Support Stand, 3/4 Ton Capacity Under Hoist Jack Stand, Lifting from 52.8 to 76 in, Self-Locking Threaded Screw, Bearing Mounted Spin Handle Pole Jack, Support Vehicle Components

<div> <h3><strong>Prodcut Description</strong></h3> <div><strong>Round Base Under Hoist Jack Stand, Provide Strong Support for Repairing Cars</strong></div> <div> <div>The support capacity of the underhoist support stand is 3/4 ton/1653.5 lbs. The slender yet sturdy and durable support rod design provides the advantage of lightweight and easy operation at close range while being resistant to bending or deformation. It is a helpful tool for inspecting the underside of vehicles and performing professional exhaust repairs, shock absorber replacements, and other vehicle component maintenance tasks.</div> </div> </div> <div> <div> <div><strong>Excellent 3/4-Ton Support Capacity</strong></div> <div> <div>The robust 3/4-ton (1653.5 pounds) load-bearing capacity provides the strength and reliability needed for automotive lifting. Constructed using Q235B steel, this hoist stand is durable and resistant to deformation and bending. It's the ideal and dependable tool for lifting vehicles.</div> </div> </div> <div> <div><strong>Smooth Height Adjustment</strong></div> <div> <div>The rotation handle of this jack stand is equipped with thrust bearings, allowing for effortless and quick height adjustments even under extreme pressure from heavy loads. Achieve simple and efficient lifting and lowering. Height adjustment range: 52.8" - 76.0".</div> </div> </div> <div> <div><strong>Top-Down Stability</strong></div> <div> <div>This under hoist stand uses a U-shaped tray with rubber padding to lift and support car contact points. The lifting is slip-resistant and less prone to shifting, minimizing the risk of scratching the chassis. The 0.2" thick base ensures a larger contact area, providing enhanced stability.</div> </div> </div> <div> <div><strong>Self-Locking Feature</strong></div> <div> <div>Grasp the rubber handle with both hands and rotate the screw rod to securely lock the height. This hoist jack is designed to provide safety and convenience for those using support stands under the vehicle without the need for assistance from others or additional tools.</div> </div> </div> <div> <div><strong>Widely Used in Automotive Maintenance</strong></div> <div> <div>The car stand jack provides partial support for positioning vehicle components during the installation and removal processes. It serves as a valuable tool for inspecting the underside of automobiles and conducting specialized exhaust repairs, often used with floor jacks and automotive lifts.</div> </div> </div> <div> <div><strong>Easy Installation and Use</strong></div> <div> <div>After receiving the package, a simple installation is required. Just connect the base, the first section, the second section, and the third section in sequence, and finally, attach the bearing, height adjustment handle, and top support to the screws.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Item Model Number: US075</div><div>Weight Capacity: 1653.5 lbs / 0.75 t</div><div>Maximum Height: 76.0" / 1930 mm</div><div>Minimum Height: 52.8" / 1340 mm</div><div>Main Material: Q235B</div><div>Lead Screw Length: 27.6" / 705 mm</div><div>Handle Length: 14.6" / 370 mm</div><div>Top Head Thickness: 0.4" / 10 mm</div><div>Product Weight: 25.6 lbs / 11.7 kg</div><div>Product Dimensions: 11.8" x 11.8" x 52.8" / 300 x 300 x 1340 mm </div> <div> <h3><strong>Package Content</strong></h3> <div>1 x Underhoist Support Stand</div><div>1 x 51106 Bearing</div><div>1 x M14×65 Bolt</div><div>1 x M14 Nut</div><div>1 x M8×16 Bolt</div><div>1 x User Manual </div></div></div>

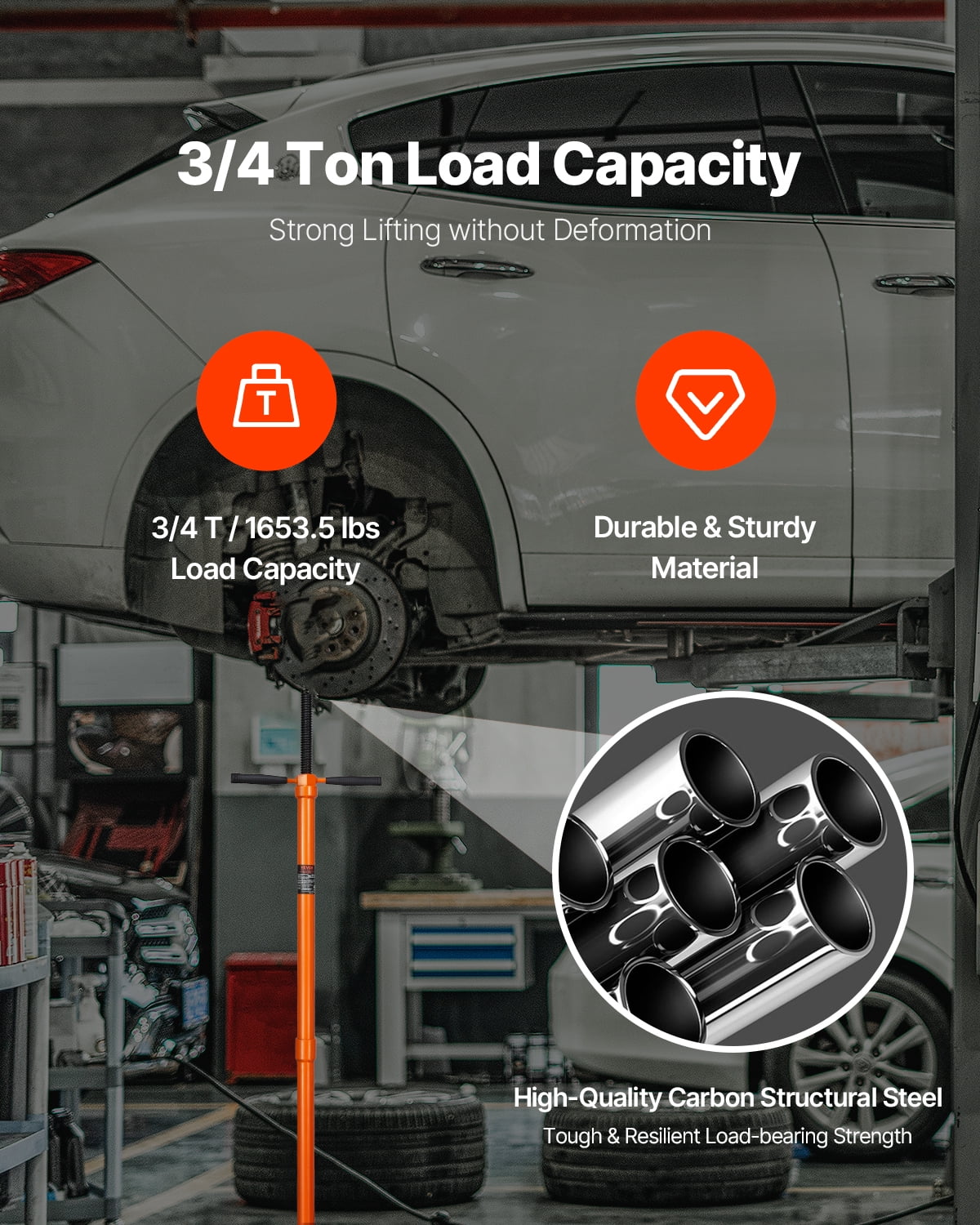

• 1653.5 lbs Impressive Load Capacity: This underhoist support stand can support a weight of 1653.5 lbs / 0.75 tons. The sturdy tubular steel frame helps prevent deformation or twisting. At least 2 stands are required for use and can support most small cars and similar vehicles.

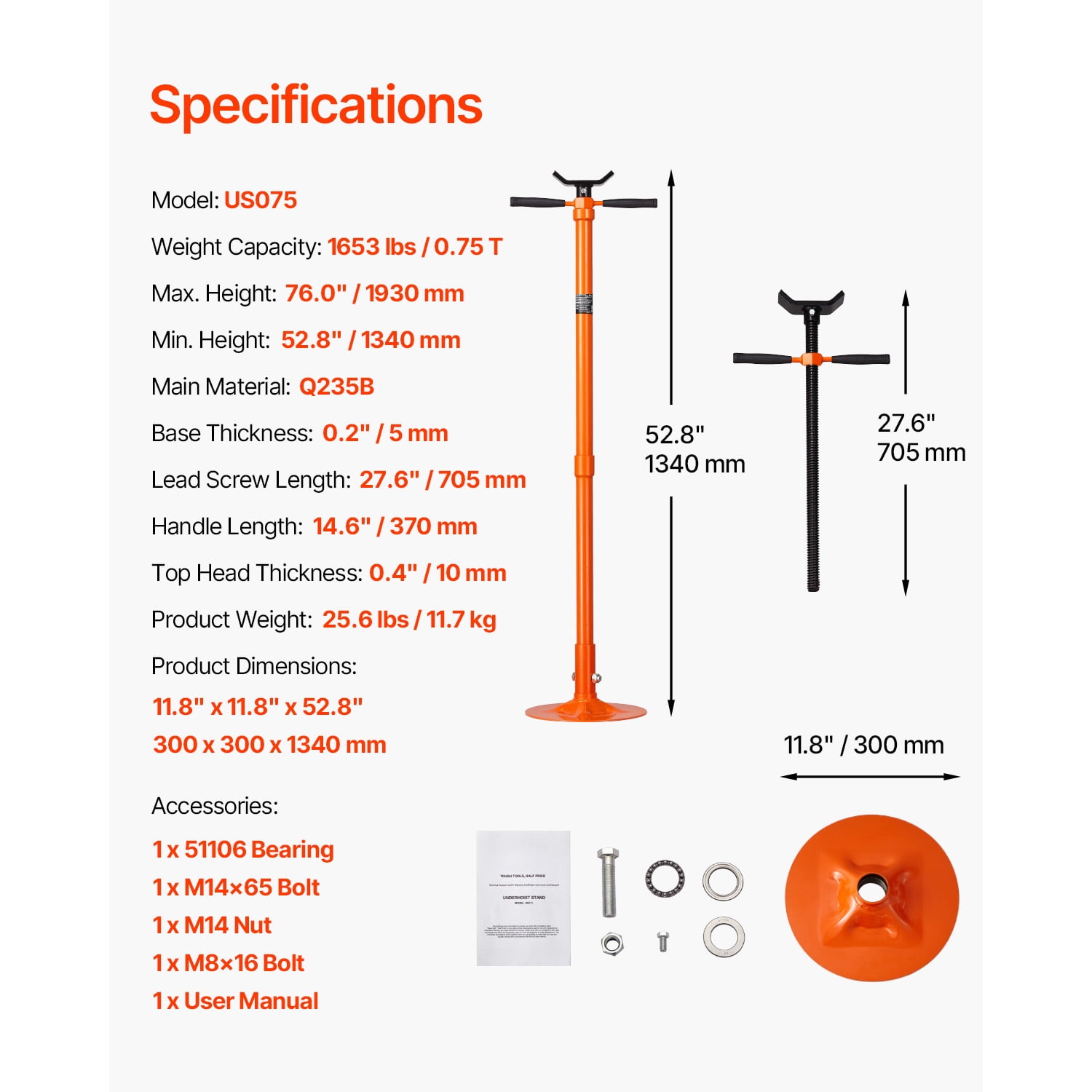

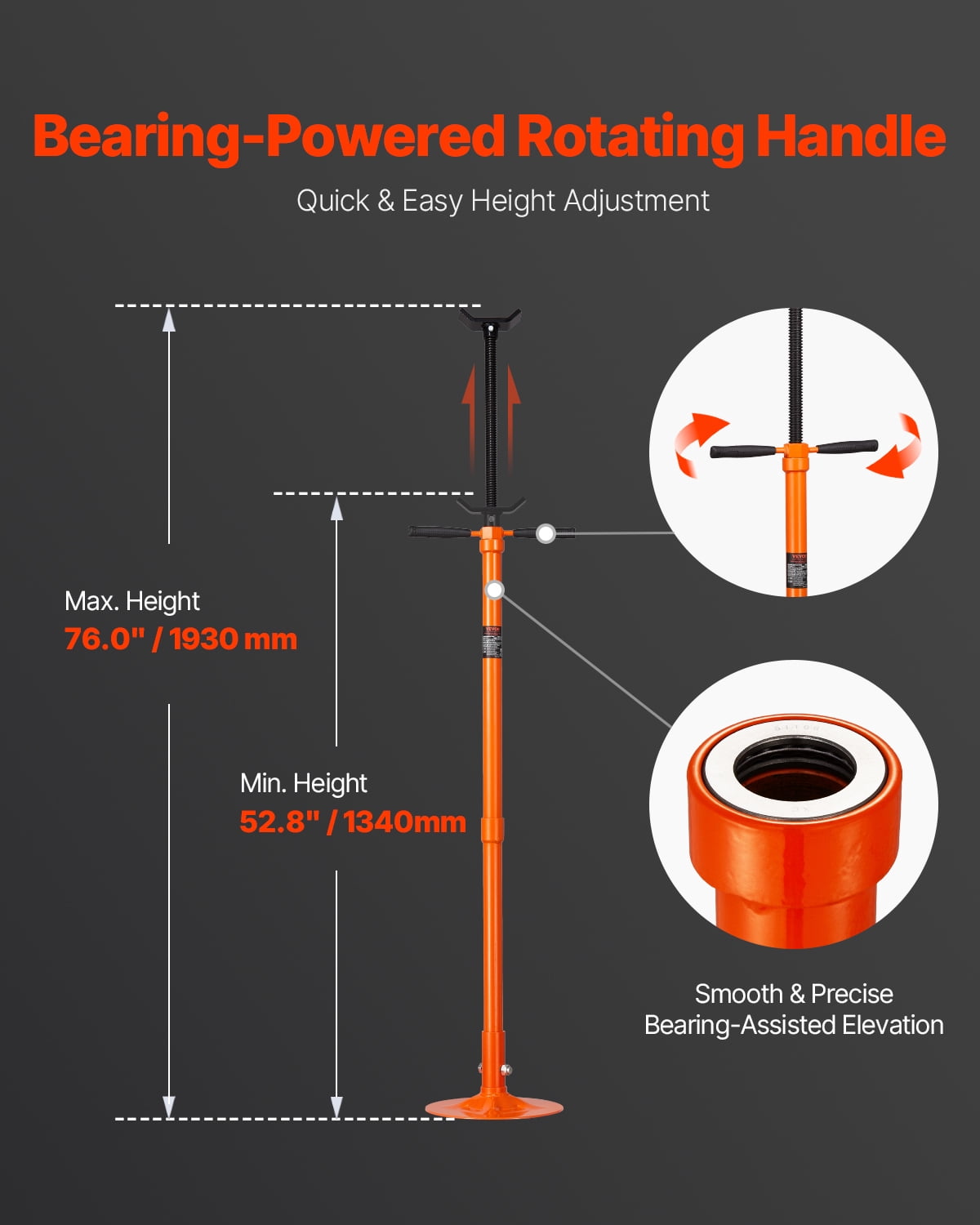

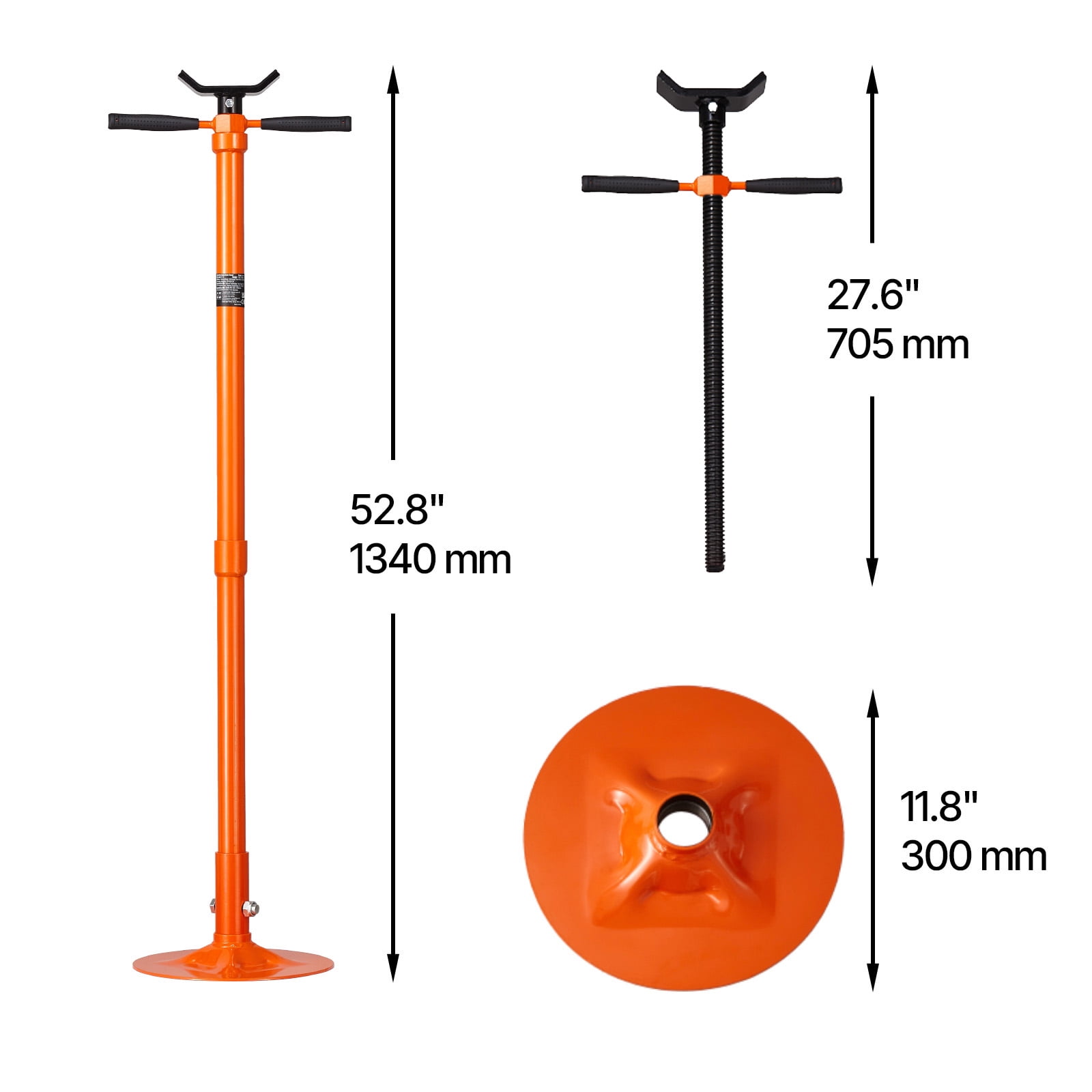

• Bearing Mounted Spin Handle: The spin handle of the jack stand incorporates a thrust bearing, making it easy to raise and lower, even under the extreme pressures of a heavy load. The height adjustment range is 52.8" - 76.0" / 1340 - 1930 mm, catering to the bottom clearance requirements during most maintenance tasks.

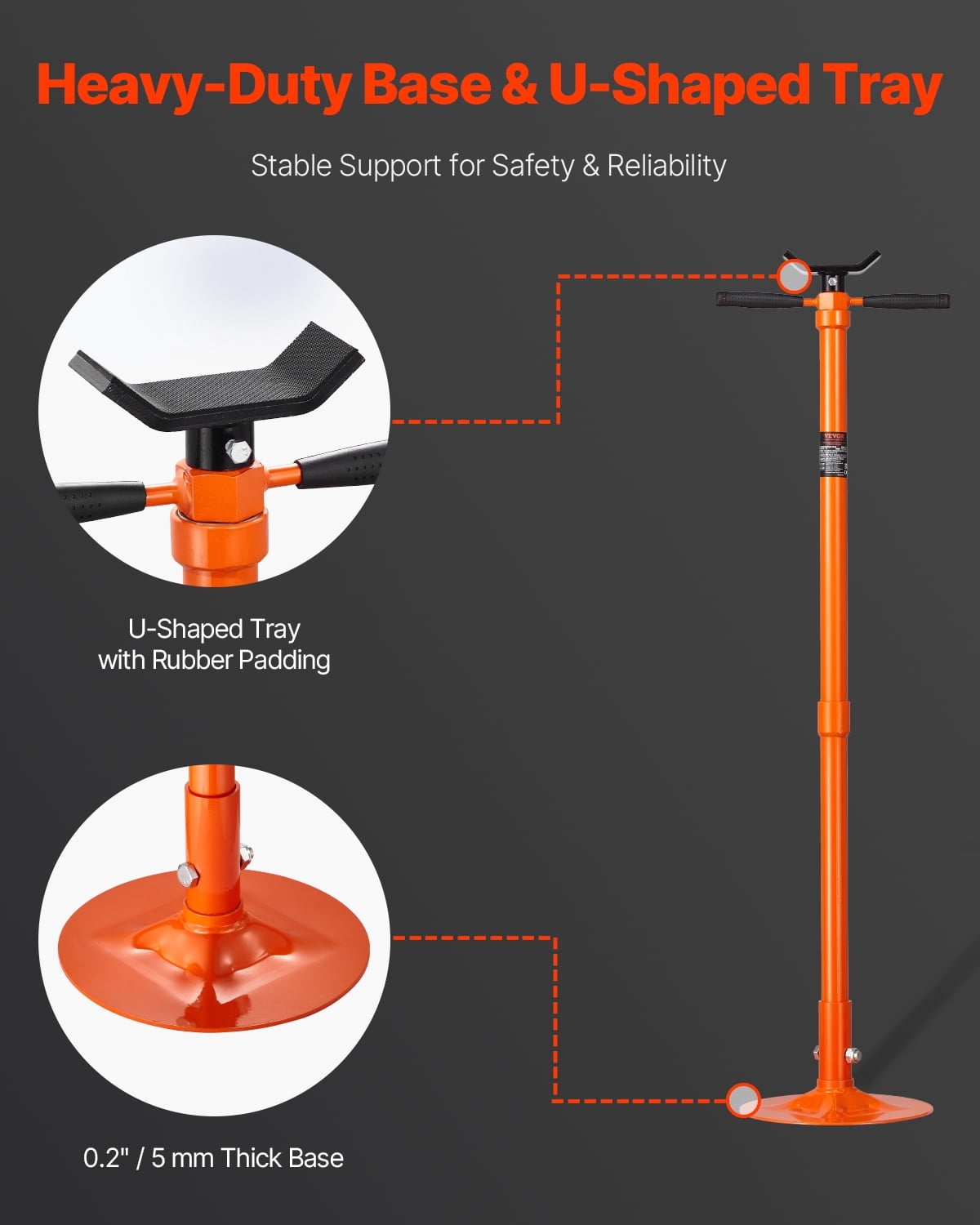

• Safety and Stability: A 0.2" / 5 mm thick circular base enhances load stability, while the U-shaped tray with rubber padding provides secure, non-slip support without causing damage. This design of our hoist stand ensures a firm and stable hold, preventing the vehicle from wobbling.

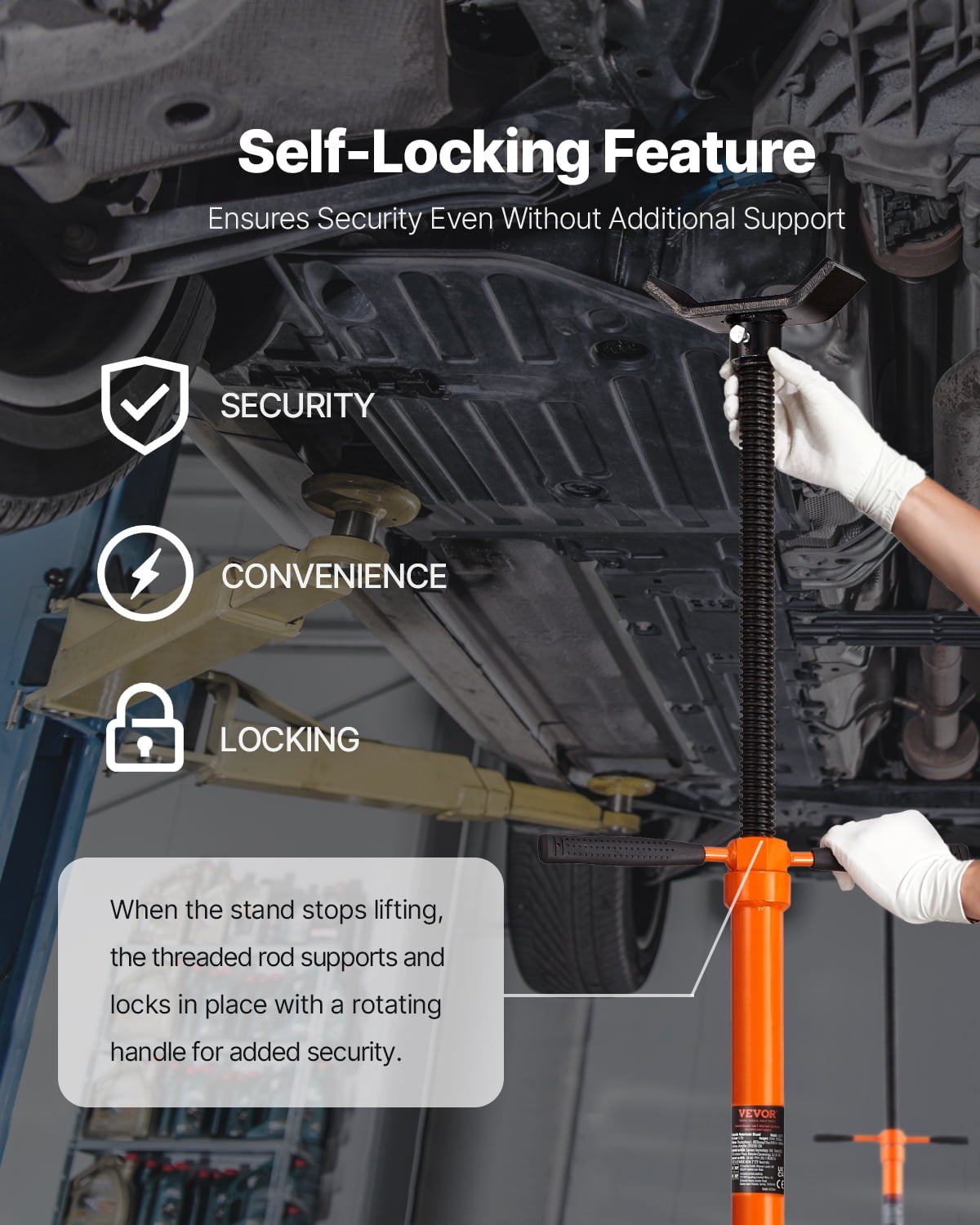

• Self-Locking Feature for Easy Operation: The threaded screw rod provides a self-locking function to prevent the stand from lowering without assistance. Adjusting the under hoist jack stand under the vehicle is also very secure. The rubber handle provides a comfortable grip.

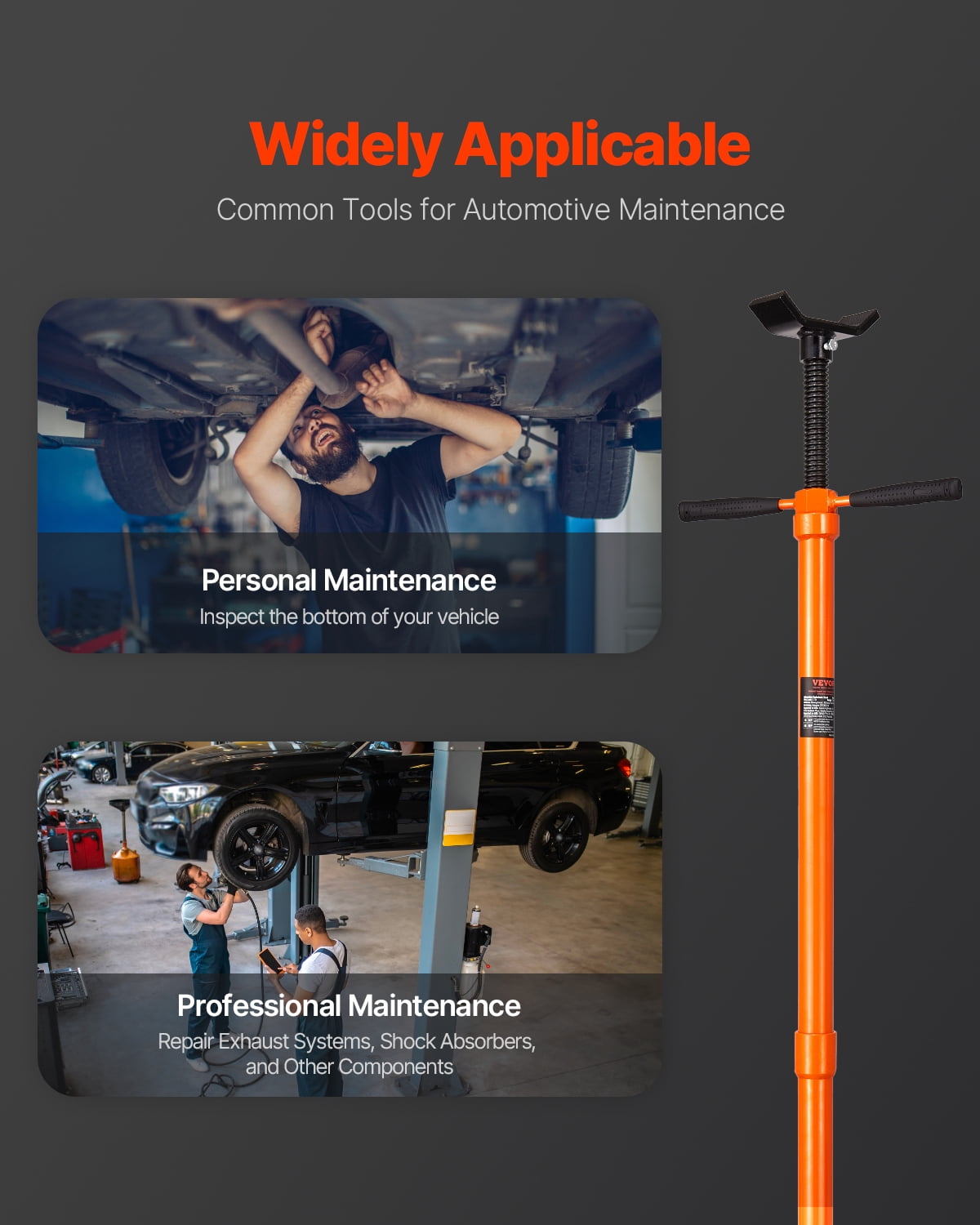

• Versatile Applications: The screw jack provides partial support for positioning vehicle components during installation and removal processes. It provides technicians with added height assistance when working on components such as transmissions, CV joints, radiators, drive shafts, exhaust systems, and catalytic converters, among others.
