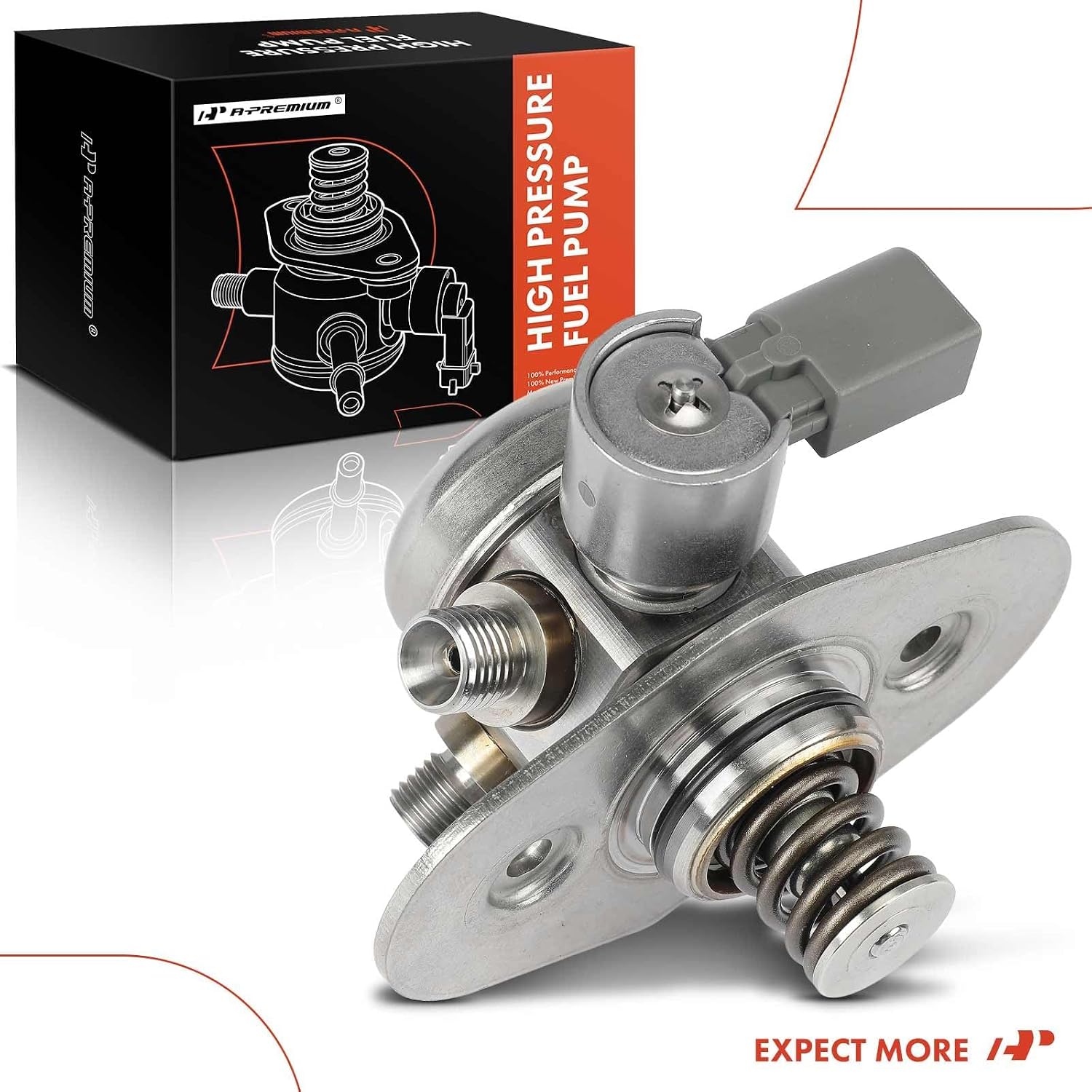

A-Premium Direct Injection High Pressure Fuel Pump Compatible with BMW 320i/320i xDrive 13-14, 328i 12-14, 328i xDrive 13-14, 328i GT xDrive 14, 528i/528i xDrive, X3, 428i/428i xDrive, X1, 228i, Z4
US$39.52
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by vvnk.nl
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 228669410 | Release Date | 2026/05/31 | List Price | US$39.52 | Model Number | 228669410 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Vehicle Fitment]: Compatible with BMW F22/F45/F46 Series 228i 2014 L4 2.0L (Engine Code N20B20A), F30 Series 320i/320i xDrive 2013-2014 L4 2.0L, 328i 2012-2014 L4 2.0L (Engine Code N20B20A), 328i GT xDrive 2014 L4 2.0L, 328i xDrive 2013-2014 L4 2.0L (Engine Code N20B20A), F32 Series 428i/428i xDrive 2014 L4 2.0L (Engine Code N20B20A), F10 Series 528i/528i xDrive 2012-2014 L4 2.0L, E84 Series X1 2013-2014 L4 2.0L, F25 Series X3 2013-2014 L4 2.0L, E89 Series Z4 2012-2014 L4 2.0L
- [Reference Number]: 13517584461, 66801, HM10017
- [Specifications]: ① Connector Shape: Oval; ② Fuel Type: Gas; ③ Bolt or Gasket Included: No; ④ Inlet Fitting Thread Size: M14-1.5; ⑤ Inlet Quantity: 1; ⑥ Inlet Type: Threaded; ⑦ Outlet Quantity: 2; ⑧ Outlet Type: Threaded; ⑨ Terminal Quantity: 2; ⑩ Terminal Type: Blade
- [Important Note]: This is a high pressure fuel pump(On Engine), not a Fuel pump assembly(In-tank fuel pump). It only fixes issues caused by low fuel rail pressure. Order only if you have confirmed: ①Check engine codes P0087/P0088; ②Actual fuel rail pressure is low; ③Mechanic confirmed HPFP failure. Please verify the specific symptoms before purchasing to avoid return hassles
- [Attention]: Install and pre-tighten the bolts on both sides together so that the pump body plunger is adjusted perpendicular to the camshaft, and then tighten to secure.
| ASIN | B0BZV9JNJ6 |
|---|---|
| Fit Type | Vehicle Specific Fit |
| Gas Type | gas |
| Brand Name | A-Premium |
| Unit Count | 1.0 Count |
| Item Weight | 1.02 Kilograms |
| Manufacturer | PremiumpartsWhosale |
| Model Number | Compatible with BMW |
| Body Material | Aluminum |
| Material Type | Aluminum |
| Mounting Type | Tank Mount |
| Product Grade | Replacement Part |
| Product Style | Piston |
| Connector Type | Oval |
| Operation Mode | Mechanical |
| Specification Met | OE |
| Auto Part Position | Front |
| Automotive Fit Type | Vehicle Specific Fit |
| Inlet Connection Size | 0.55 Inches |
| Inlet Connection Type | Threaded |
| Part Interchange Info | replacement |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | Threaded |
| Manufacturer Part Number | APHFP004D |
| OEM Equivalent Part Number | 13517584461, 66801, HM10017 |
| Compatible with Vehicle Type | Compatible with BMW 320i, 320i xDrive, 328i, 328i GT xDrive 2014, 328i xDrive, 528i, 528i xDrive, X3, 428i, 428i xDrive, X1, 228i, Z4 |
| Manufacturer Warranty Description | One Year Unlimited Mileage Quality Guarantee. The guarantee will be only for the cost of the item, we will not responsible for installation or other fees like labor expenses, towing expenses, additional repair expenses or other related expenses. |
